Regular AC vs step-wave output of my UPS

Regular AC

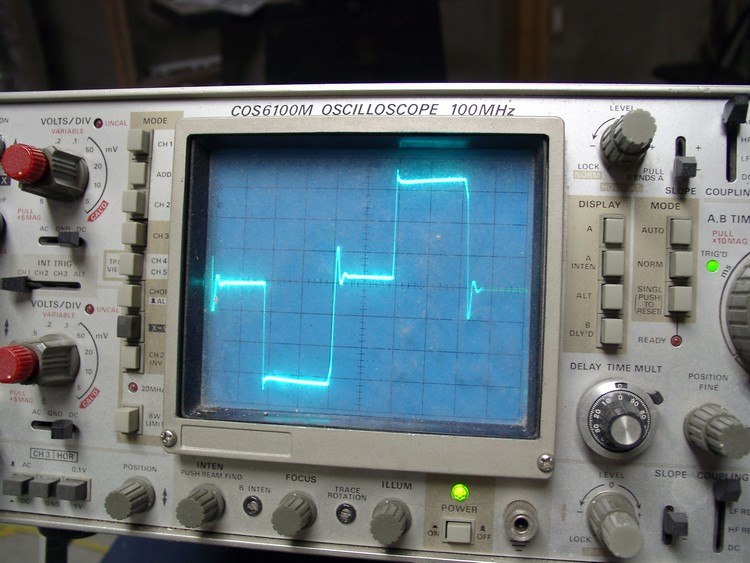

UPS output in battery mode (Opti 1500C)


An excellent comparison of various UPS outputs can be found here: Observations on the quality of power produced by various backup devices
