Isolation transformer frame

I have an isolation transformer I used to use when working on CRTs. It was difficult to move around though, because although despite being about 6 inches cubed, it weighs about 54 pounds.

Recently I decided to build a handle onto it. I ended up building a small aluminum frame that bolted to the transformer using its existing bolt holes, and a top panel to which I mounted a power switch, fuse, indicator light, adjustable voltage knob, output outlet, and a handle. I haven't added a skirt to cover up the exposed tranformer terminals, but it's now easier to use and carry.

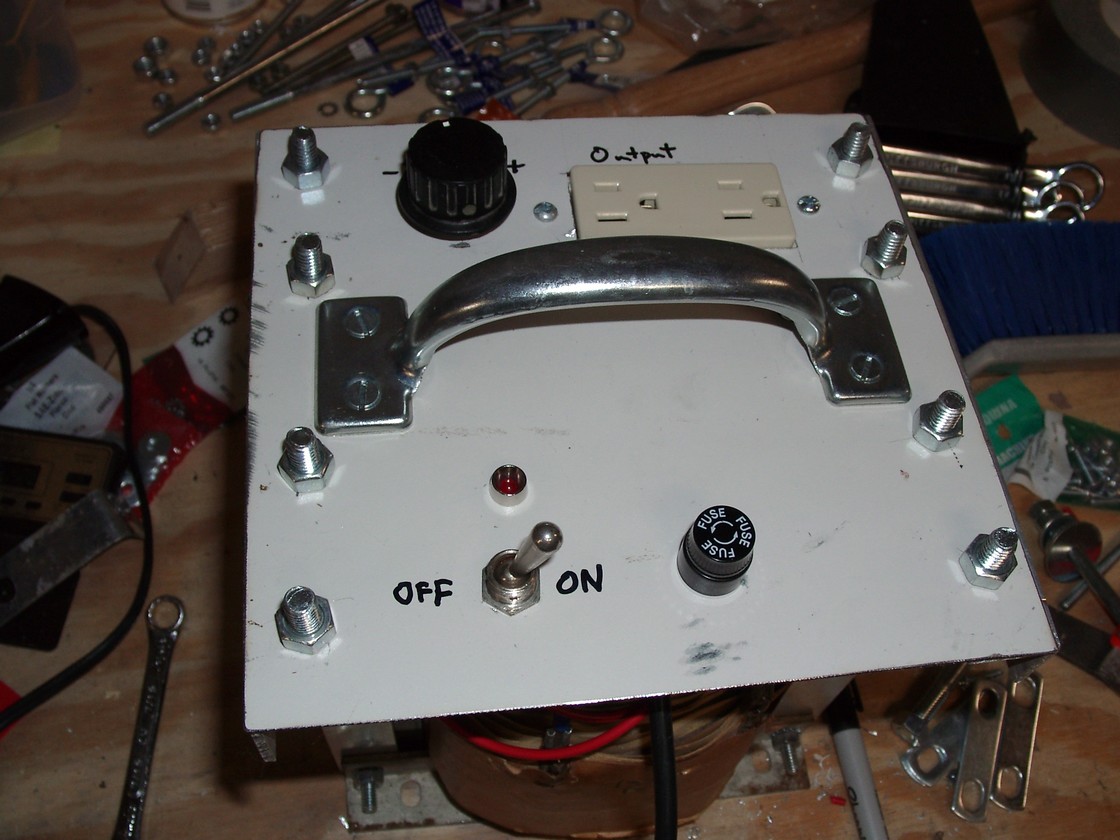

Top panel of the transformer

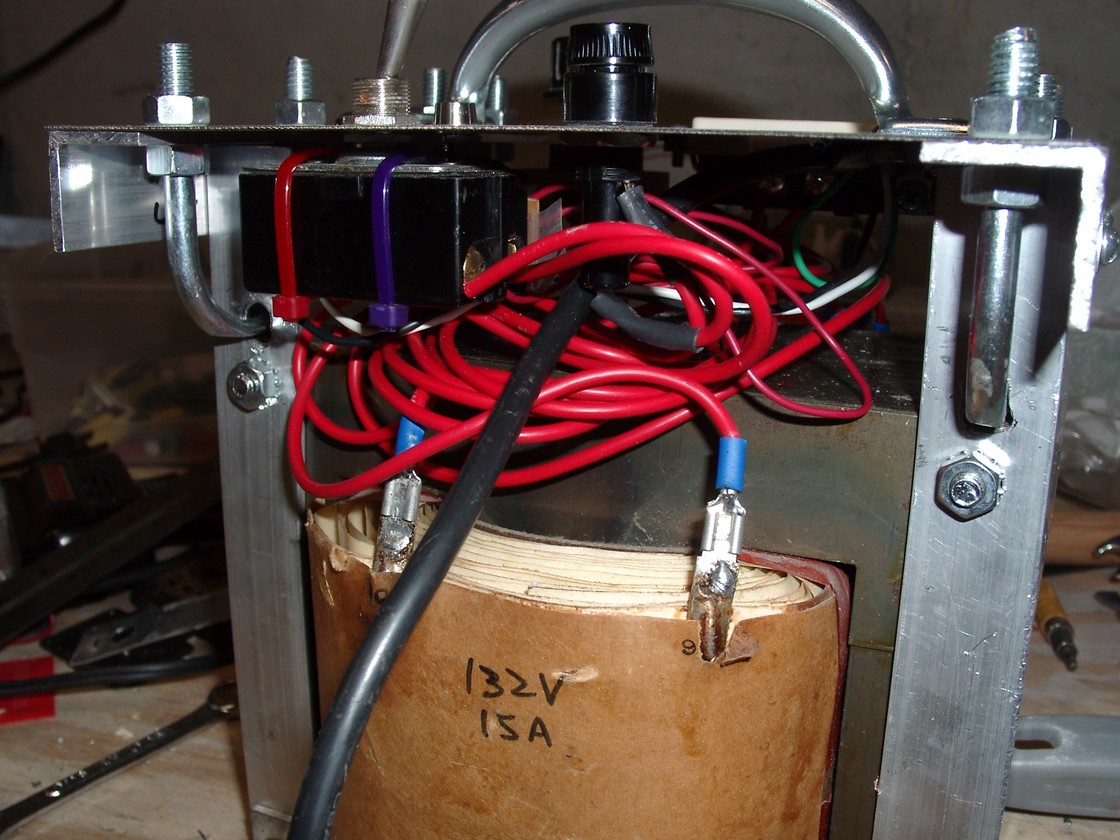

Primary side of the transformer

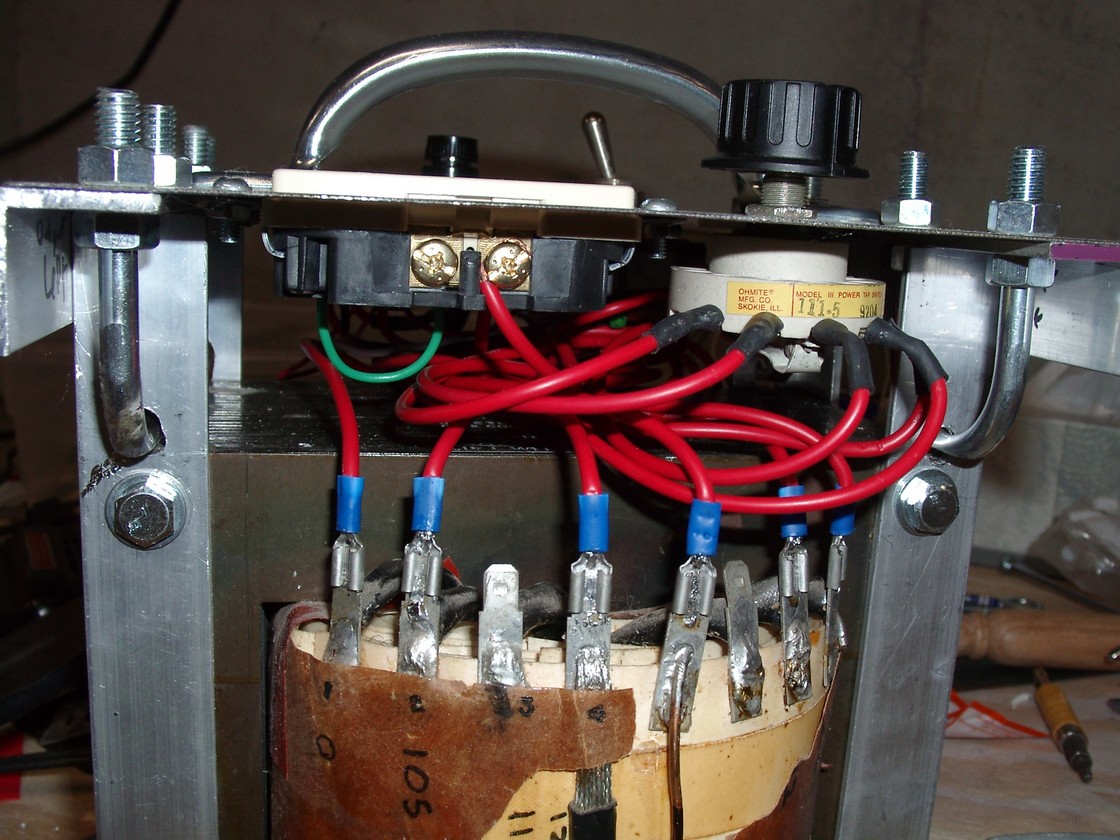

Secondary side of the transformer

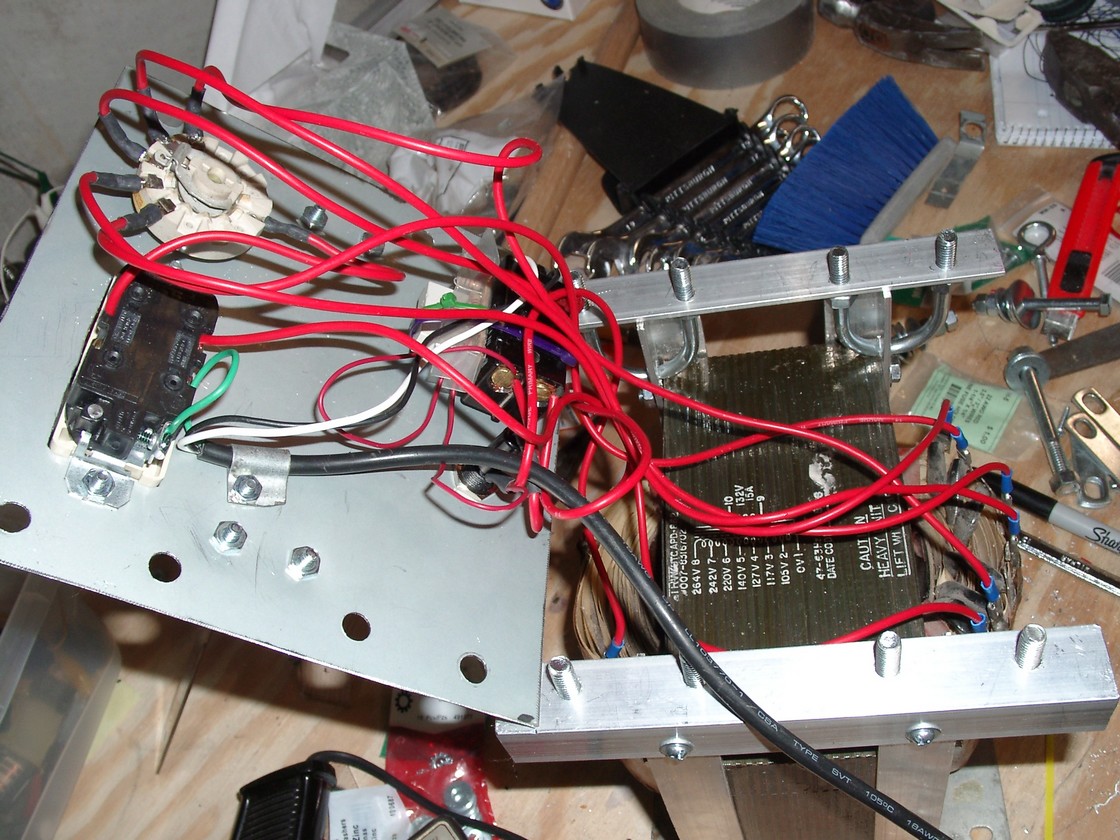

Panel wiring
